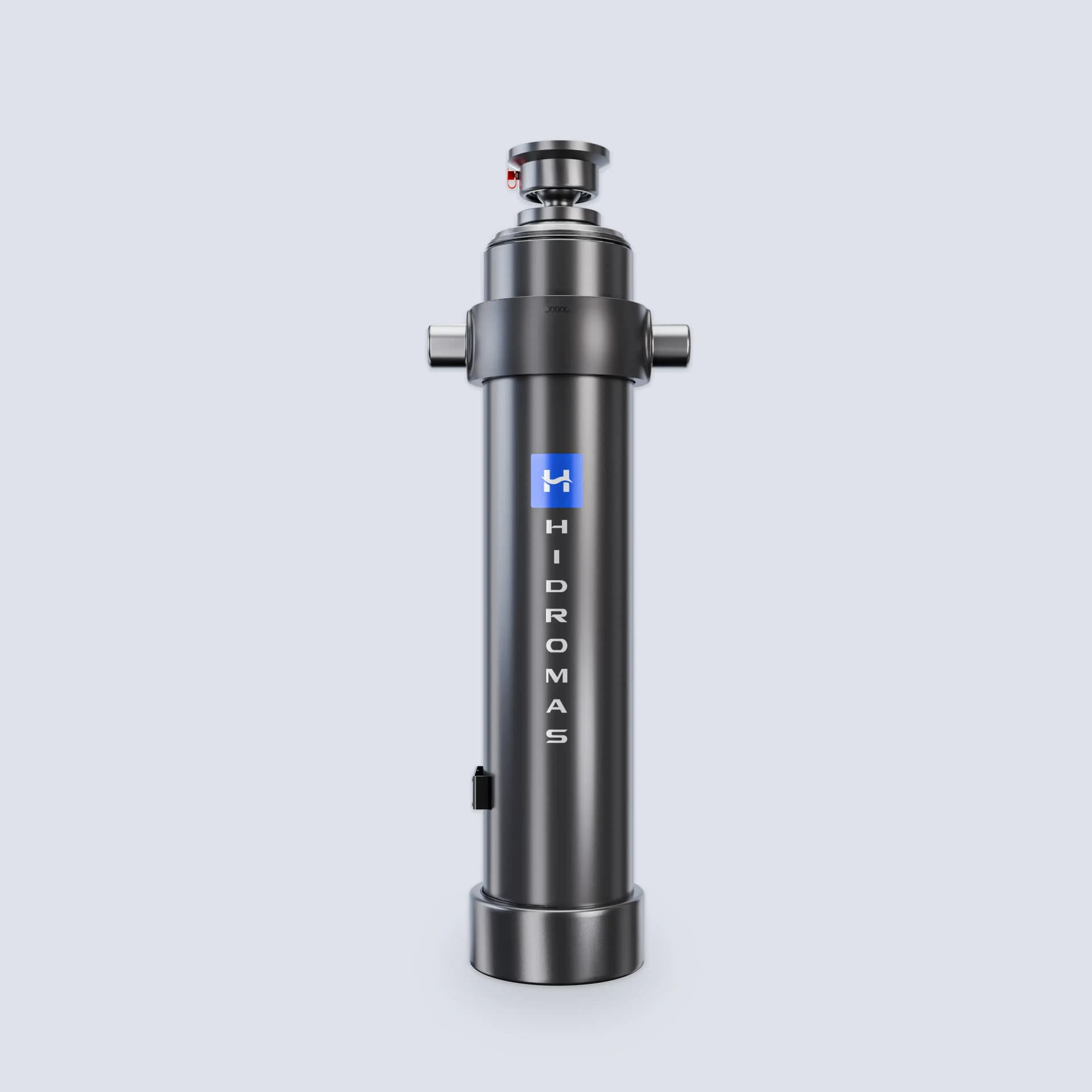

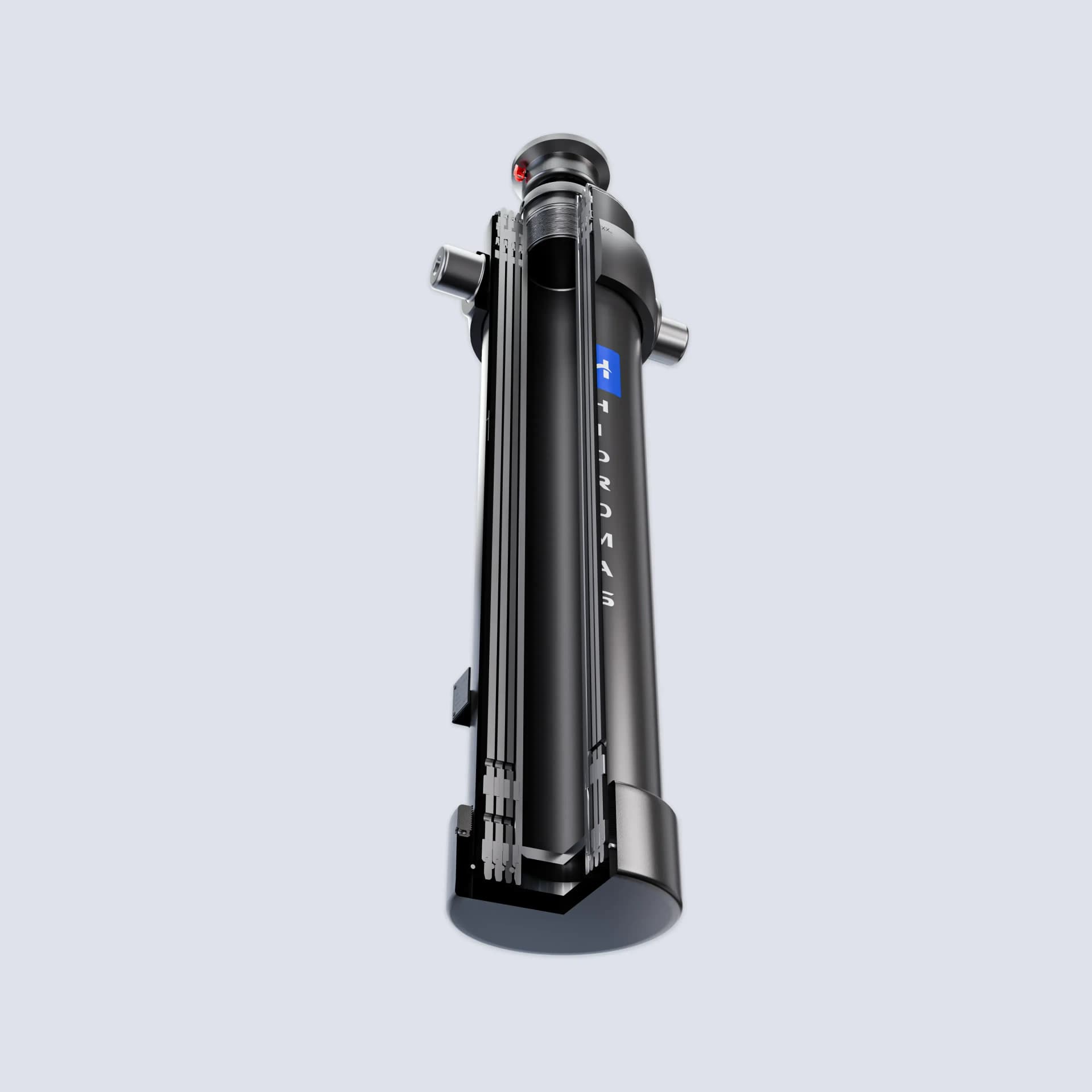

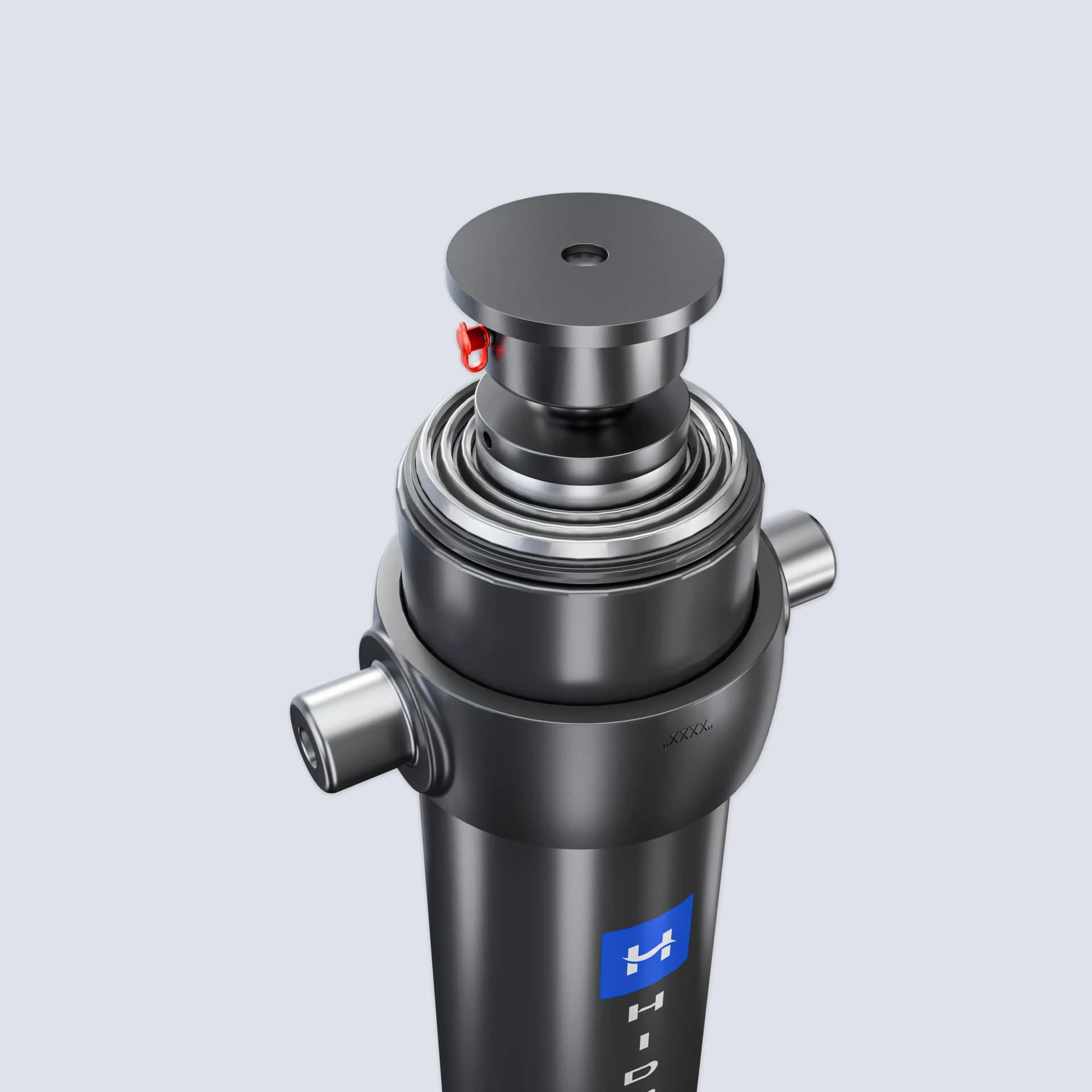

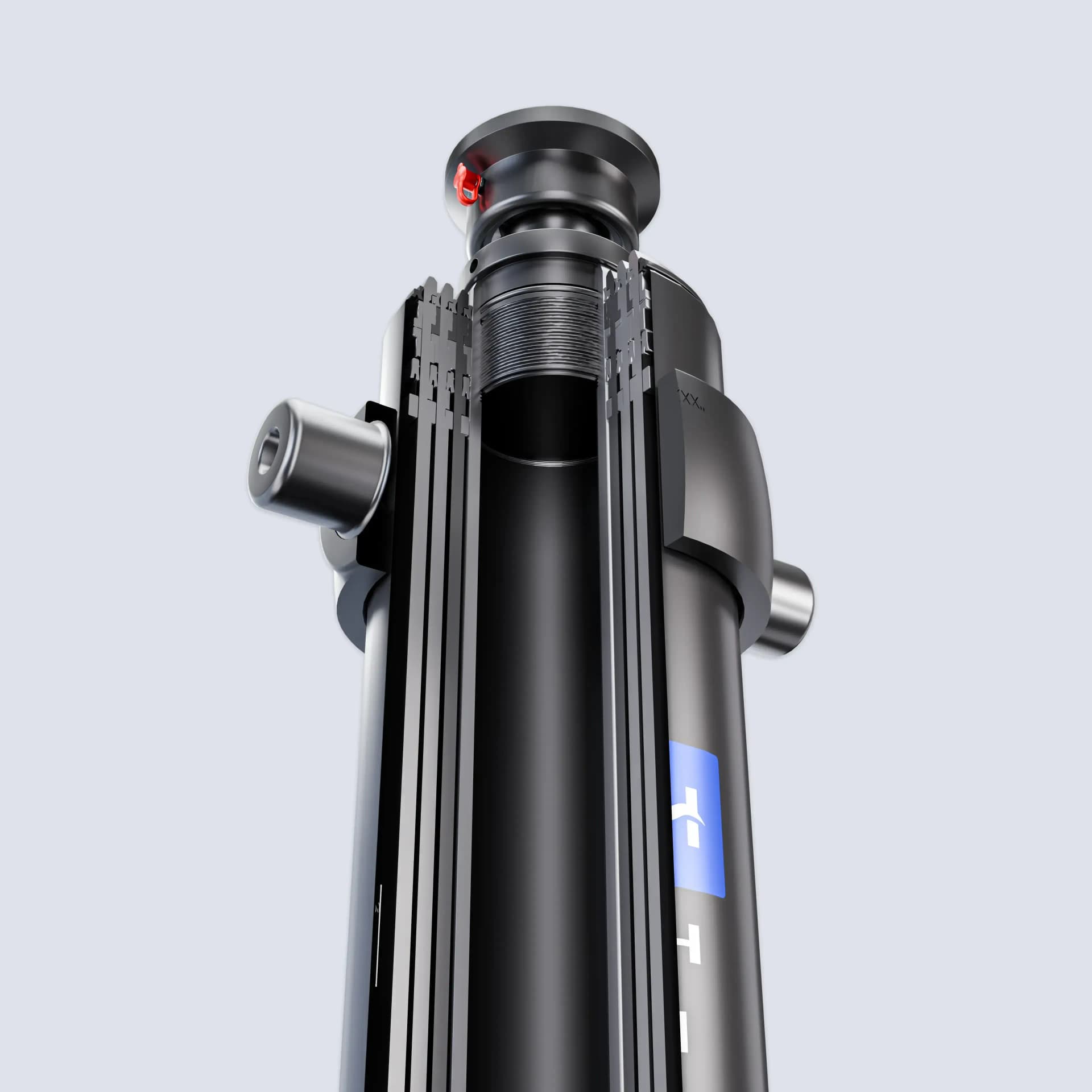

GHS 98 x 4 x 1400 UBS
  • Thumbnail 1
  • Thumbnail 2
  • Thumbnail 3
  • Thumbnail 4
Under Body Cylinders UBS

GHS 98 x 4 x 1400 UBS

Product Code: 4309841400714

Hidromas Telescopic Underbody Cylinders are specifically engineered for straight headboard tipper bodies, delivering reliable and efficient performance for heavy-duty tipping applications. Mounted bet...

Product Description

Hidromas Telescopic Underbody Cylinders are specifically engineered for straight headboard tipper bodies, delivering reliable and efficient performance for heavy-duty tipping applications. Mounted between the tipper body and the chassis, these cylinders provide a compact, space-efficient design while ensuring maximum stability during operation. This Underbody (UB) cylinder, featuring a 98 mm diameter...

Product Specifications

Effective Diameter (mm)98
Stroke (mm)1400
Working Pressure (bar)250
Max Working Pressure (bar)-
Stages4
Duty Segmentstandard

Download Documents

4309841400714 GHS 98-4-1400 K K273.pdf
GHS 98 x 4 x 1400 UBS.pdf
